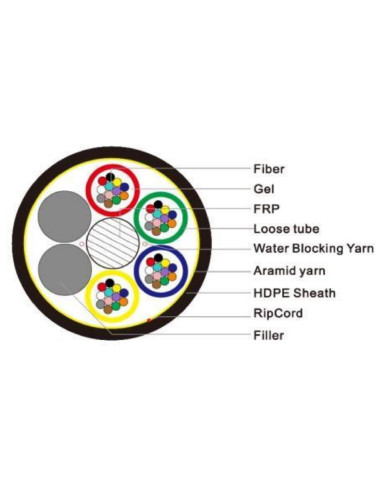

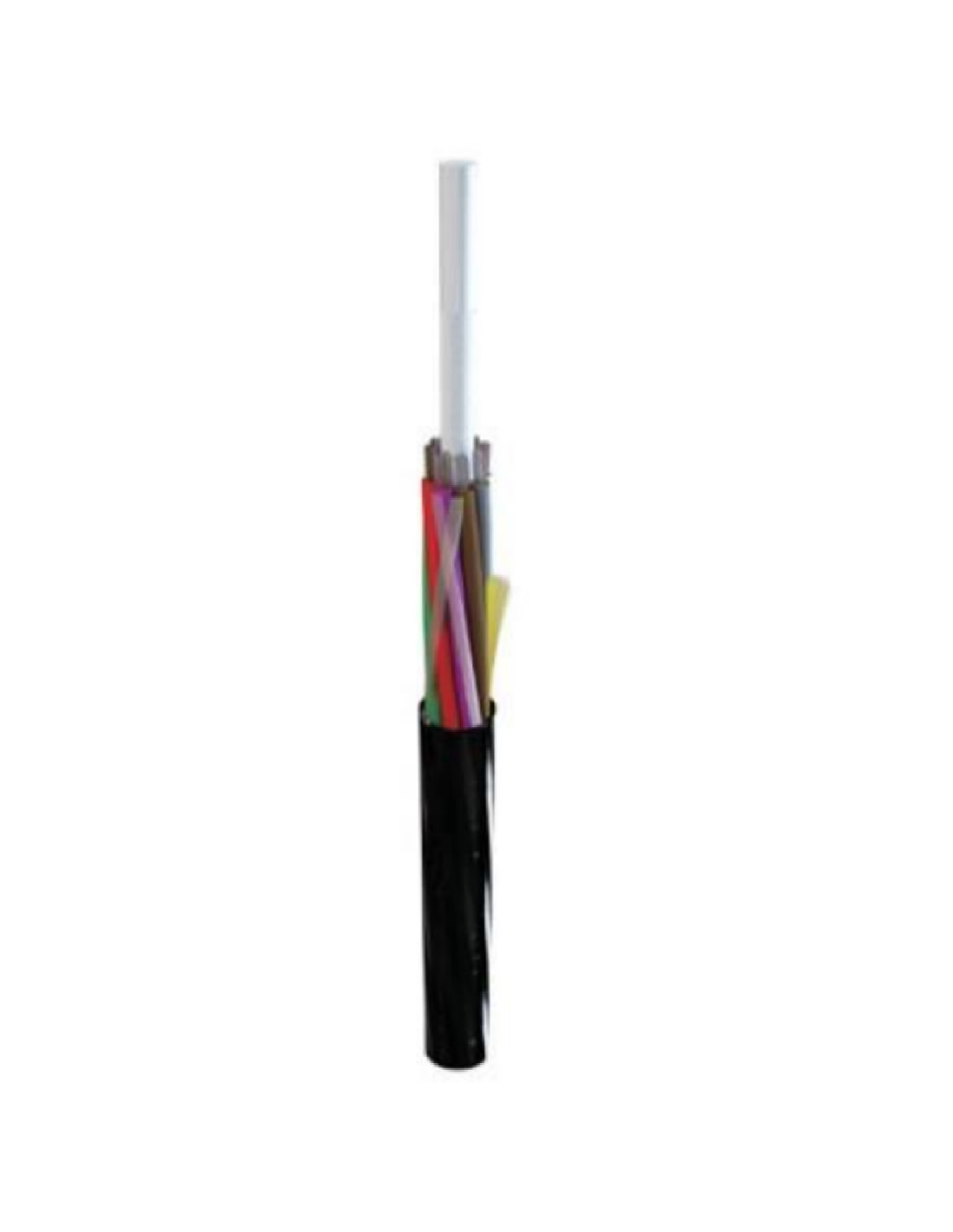

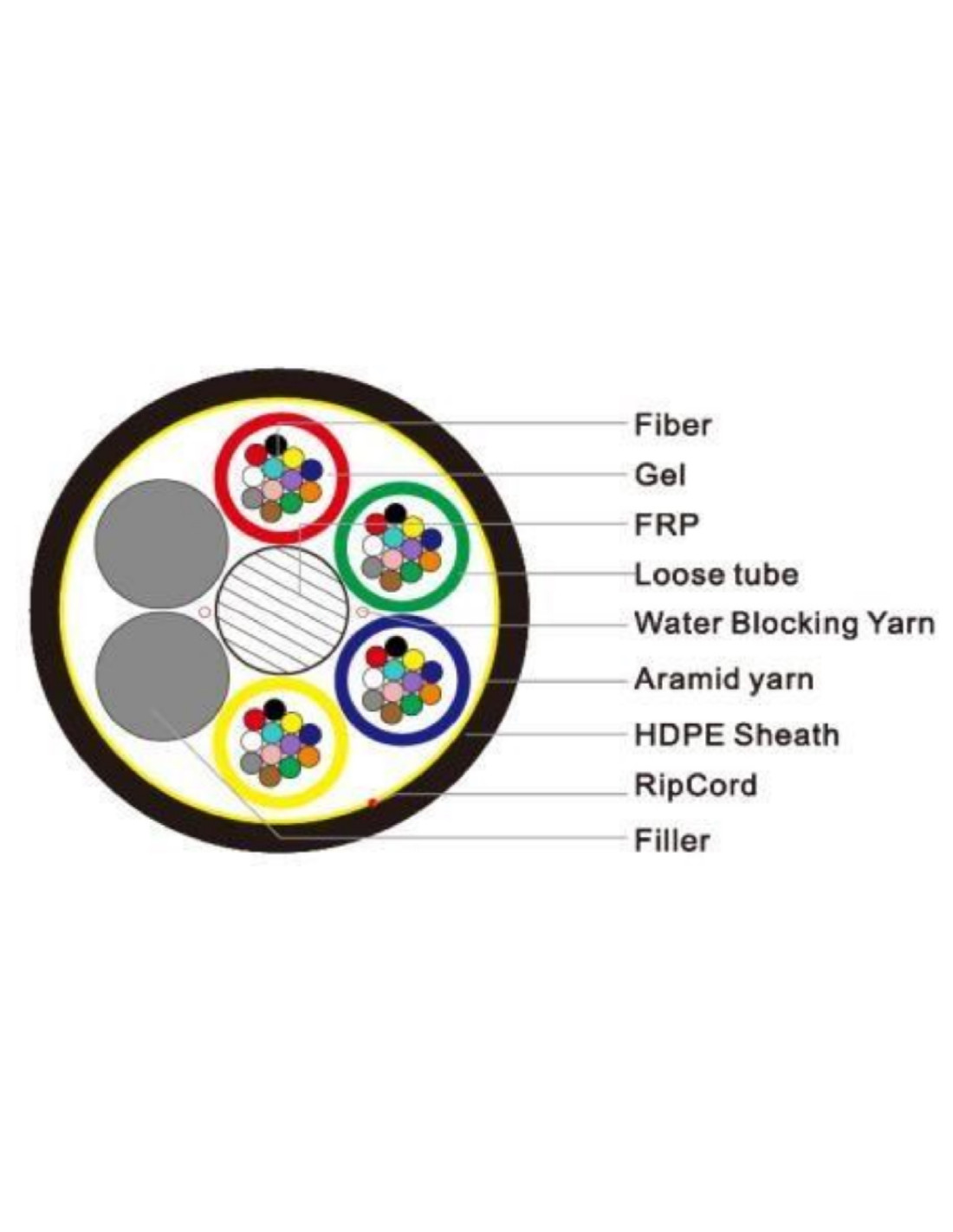

Cablu Microfibra 12-24-48-96 instalare prin suflare cu aer comprimat

Fiber type G652D

Water blocking Water blocking yarn

Net.Weight 12/29kg/km  24/28kg/km  48/27kg/km 96/39kg/km

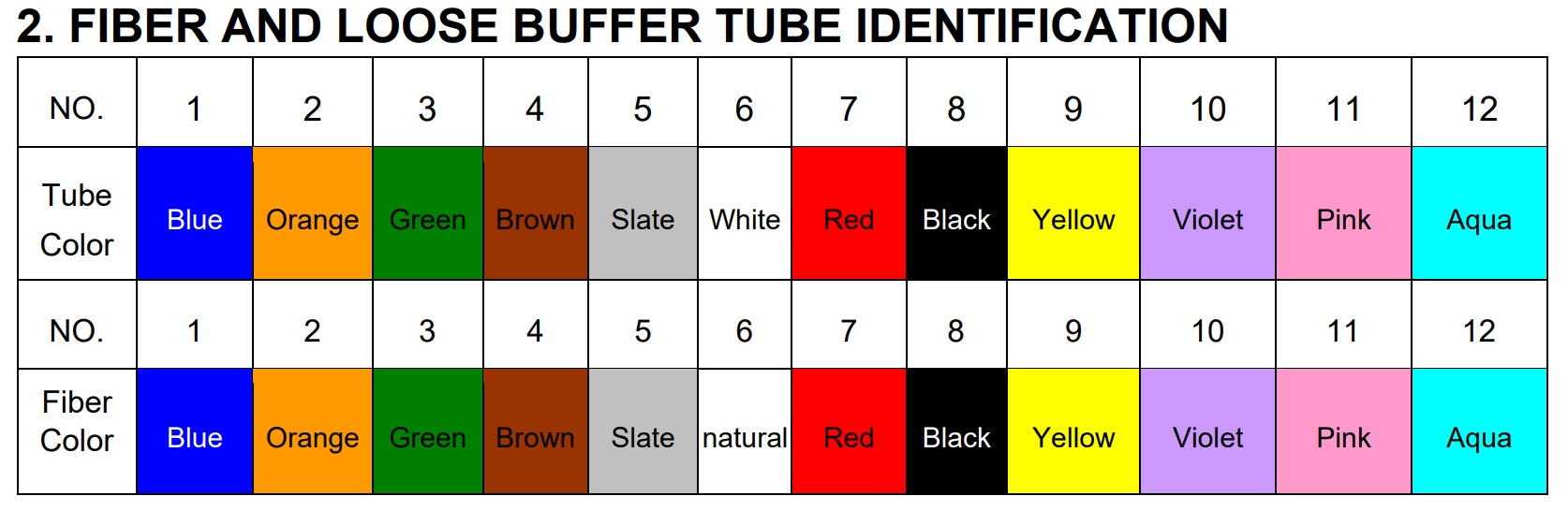

Color of fiber Blue, orange, green, brown, slate, white, red, black, yellow, violet, pink, Aqua, or as required

Color of loose tube Blue, orange, green, brown, slate, white/nature, red, black, or as required

MAT tensile loading 1000N

Attenuation vs. Bending (60mm x100turns) dB (30mm radius，100ring )≤ 0.1 @ 1625nm (10mm radius ， 1ring)≤ 1.5 @ 1625nm

Mode Field Diameter m 9.2 0.4 at 1310nm 9.2 0.4 at 1310nm

Core-Clad Concentricity m ≤ 0.5 ≤ 0.5

Cladding Diameter m 125±1 125±1

Cladding Non-circularity % ≤ 0.8 ≤ 0.8

Coating Diameter m 245±5 245±5

Proof Test Gpa ≥ 0.69 ≥ 0.69

Installation temperature -15 / 50 °C

Operational temperature range Ta1 - Tb1 -30 / 70 °C
