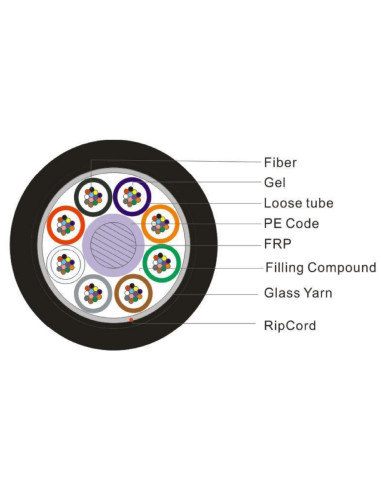

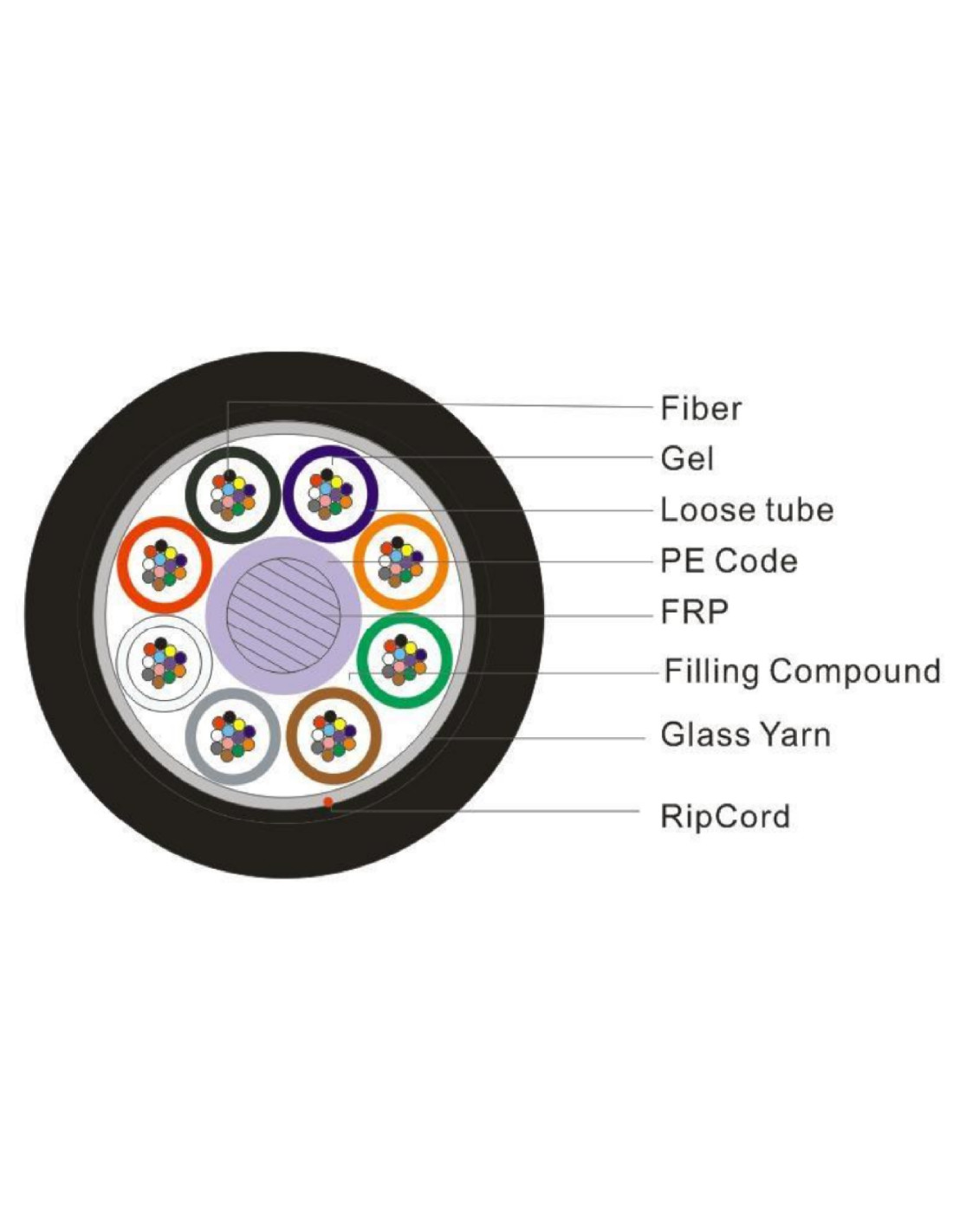

Cablu Fibra Optica FTYS-96F

Fiber count 96/G652D

Loose Tube OD(mm): 2.3 0.1 Material： PBT

Max fiber count/tube 12

No. of tubes 8

No. of fillers 0 FRP/Coating（mm） 3.0/3.9

Sequence of Tube Blue, Orange, Green, Brown, Slate, White, Red, Black

Color of Fiber Blue, Orange, Green, Brown, Slate, White,Red, Black, Yellow, Violet, Pink, Aqua

Zero Dispersion Slope ps/nm2 .km ≤ 0.092

Zero Dispersion Wavelength nm 1300 ~ 1324

Attenuation vs. Bending (60mm x100turns) dB (30mm radius，100ring )≤ 0.1 @ 1625nm (10mm radius，1ring)≤ 1.5 @ 1625nm

Mode Field Diameter m 9.2 0.4 at 1310nm 9.2 0.4 at 1310nm

Core-Clad Concentricity m ≤ 0.5 ≤ 0.5 Cladding Diameter m 125±1 125±1

Cladding Non-circularity % ≤ 0.8 ≤ 0.8

Coating Diameter m 245±5 245±5 Proof Test Gpa ≥ 0.69 ≥ 0.69

Operating:-30℃~+70℃

Store/Transport :-40℃~+70℃

Installation -30℃~+70℃
