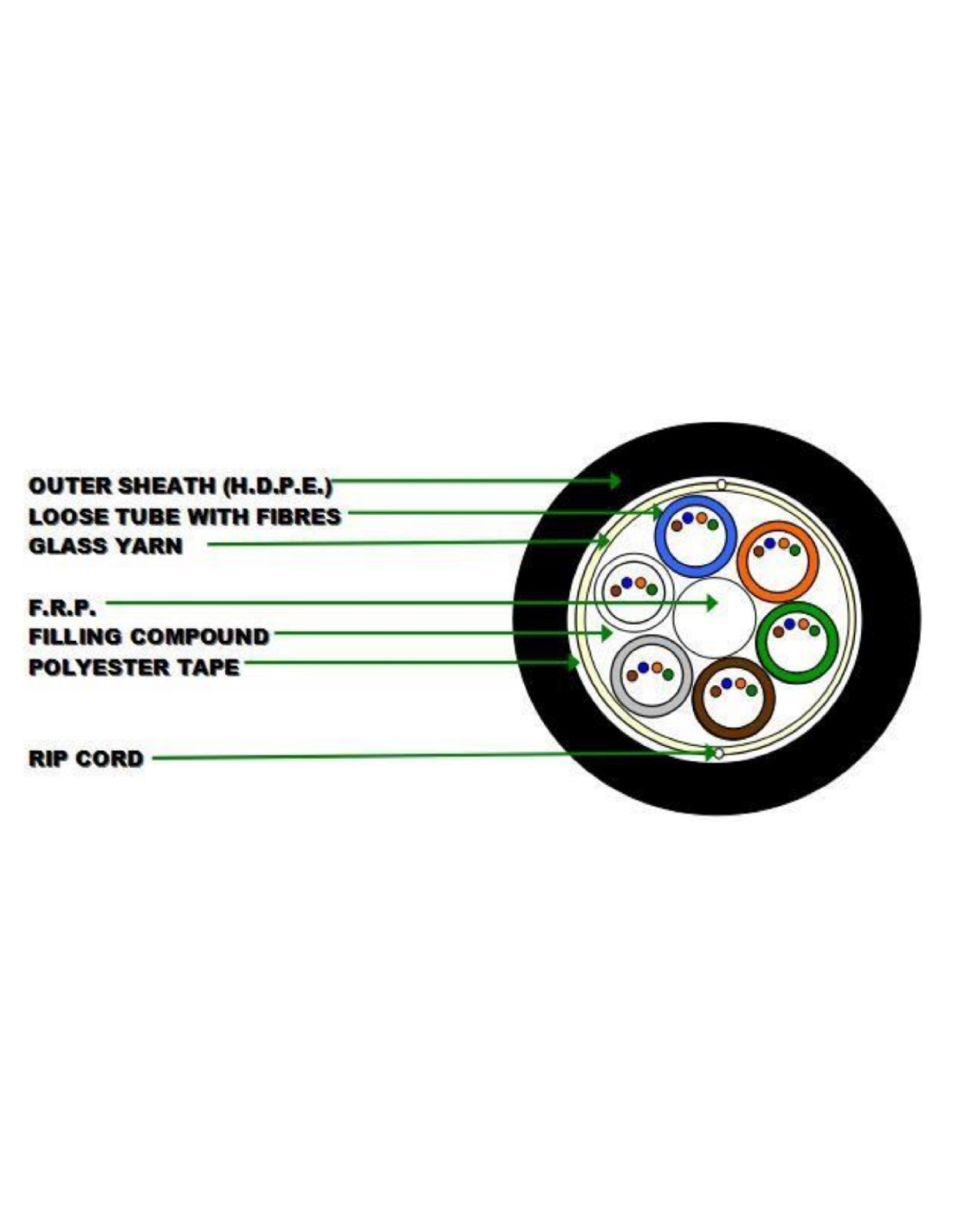

Cablu Fibra Optica FTYS-24F

Fiber type G652D G657A1

Zero Dispersion Slope ps/nm2 .km ≤ 0.092

Zero Dispersion Wavelength nm 1300 ~ 1324

Cut-off Wavelength ( cc) nm ≤ 1260

Attenuation vs. Bending (60mm x100turns) dB (30mm radius，100ring )≤ 0.1 @ 1625nm (10mm radius，1ring)≤ 1.5 @ 1625nm

Mode Field Diameter m 9.2 0.4 at 1310nm 9.2 0.4 at 1310nm

Core-Clad Concentricity m ≤ 0.5 ≤ 0.5

Cladding Diameter m 125±1 125±1

Cladding Non-circularity % ≤ 0.8 ≤ 0.8

Coating Diameter m 245±5 245±5 Proof Test Gpa ≥ 0.69 ≥ 0.69

 Long-tensile load：2500N

Short-tensile load：3250N

Cable length：≥50m

Impact height：１ｍ

Impact weigh： 450ｇ

Impact point：≥5 -.Impact frequency：≥3/point

Operating:-30℃~+70℃

Store/Transport :-40℃~+70℃

Installation: -30℃~+70℃
