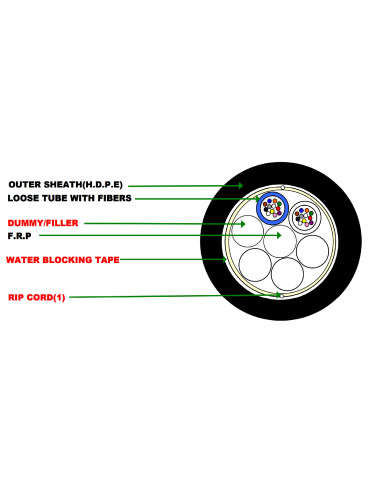

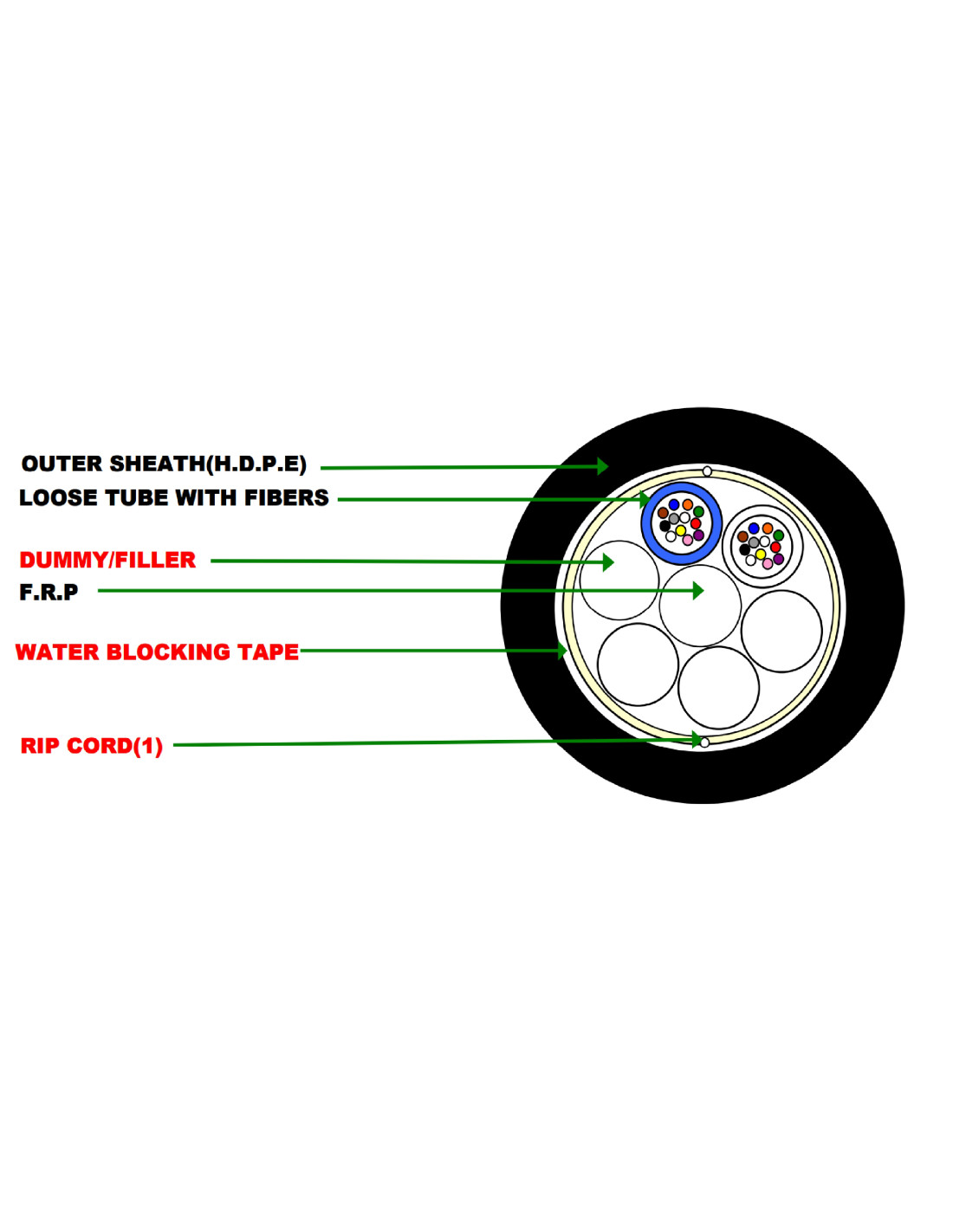

Cablu Fibra Optica FTY-12F

MAX. OPERATING TENSION-LONG TERM : 600Newton

MAX INSTALLATION TENSION –SHORT TERM : 1500 Newton

CRUSH RESISTANCE : 1000 Newton/100 mm

MINIMUM BENDING RADIUS -- TEMPORARY : 10 x cable OD PERMANENT : 20 x cable OD

MAX. OPERATING/ INSTALLATION TEMPERATURE : - 30 °C to + 70 °C

NO. OF FIBRES 12 F

NO OF TUBES/NO OF FILLER 2/4

TYPE OF FIBRE SM G652 D

LOOSE TUBE DIAMETER 1.7 mm Nominal

STRENGTH MEMBER FRP & GLASS YARN REINFORCEMENT

SEQUENCE OF TUBE BLUE, ORANGE,FILLER-1, FILLER-2,FILLER-3 & FILLER-4

COLOUR OF FIBRE BLUE, ORANGE,GREEN, BROWN, SLATE, WHITE, RED ,BLACK YELLOW, VIOLET, PINK & AQUA

OUTER SHEATH MATERIAL HDPE

OUTER SHEATH THICKNESS 1.8 mm nominal

OUTER CABLE DIAMETER 9.3 + 0.5 mm

CABLE WEIGHT 72 + 7 Kg/Km

PRINTING ON CABLE AS PER CUSTOMER REQUIREMENT

STANDARD LENGTH 2,4 + 5% KMS
