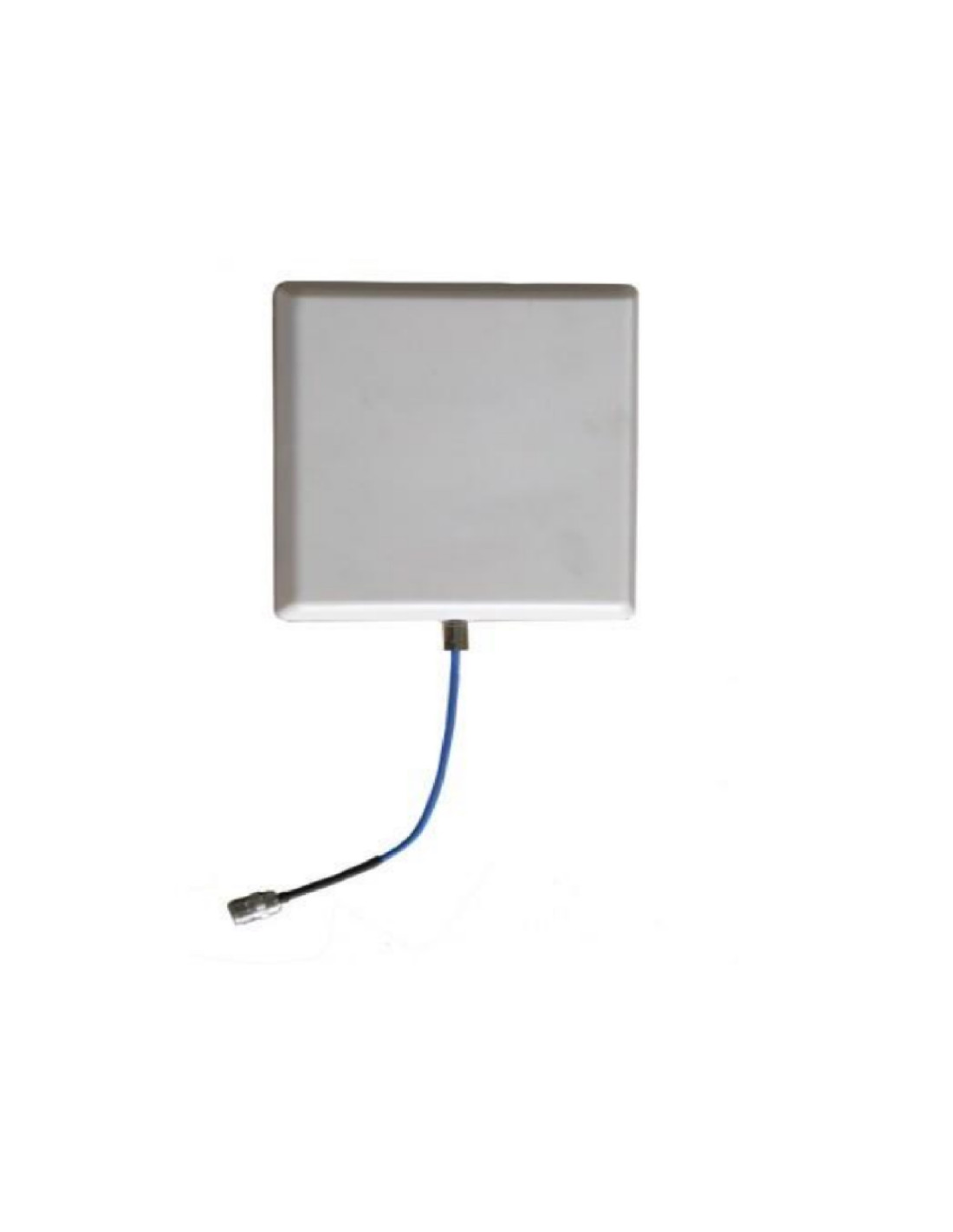

Wide band Panel Antenna 800-2700MHz 8dBi

Frequency Range 806-960 MHz 1710-2700MHz

Gain 7dBi±1dB 8dBi±1dB

Horizontal Beamwidth 90±15 deg 75±12 deg

Vertical Beamwidth 65 deg 60 deg

Front to Back Ratio ≥6 dB ≥8 dB VSWR ≤1.5

Input Impedance 50 Ω

Polarization Vertical

Maximum Power 50 W

PIM (IM3) ≤-107dBm @33dBm*2

Connector Type N-Female

Operating Temperature -40 to +70 C deg

Relative humidity 5 to 95 %

Dimensions 210x180x44 mm

Net weight 430 g Cable Length 260 mm

Radome Material ABS Radome Colour White Operating Temperature -40 to +70 C deg

Relative humidity 5 to 95 % Rated Wind Velocity 210 km/h
