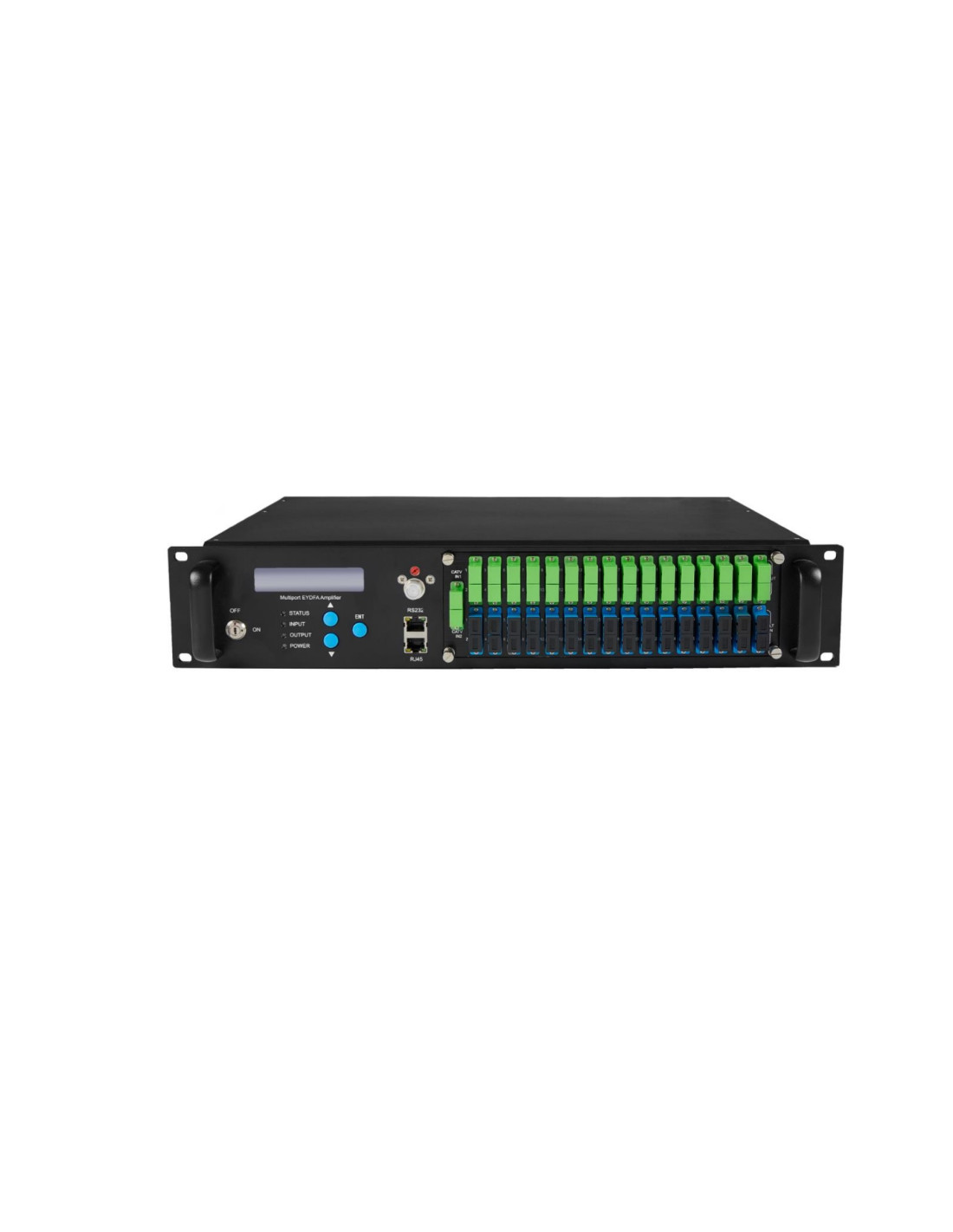

High Power Multi Ports PON EYDFA 1550nm Series(2RU)

 OLA1550 Series(2RU)

It adopts the top brand pump laser and double cladding active fiber.

Each output port is built in with CWDM.

Compatible with any FTTx PON：EPON、GPON、10GPON.

Perfect APC, ACC and ATC optical circuit design ensures low noise, high output and high reliability of the device in the whole operating band (1545 ~ 1565nm).

It has the function of automatic protection of low input or no input. When the input optical power is lower than the set value, the laser will automatically shut down to protect the operating safety of the device.

Output adjustable, adjustment range : 0~-4dBm.

RF test in the front panel(optional).

Bult- in dual power supply, automatically switched and hot plug supported.

Standard RJ45 interface is provided, supporting SNMP and WEB remote network management.
